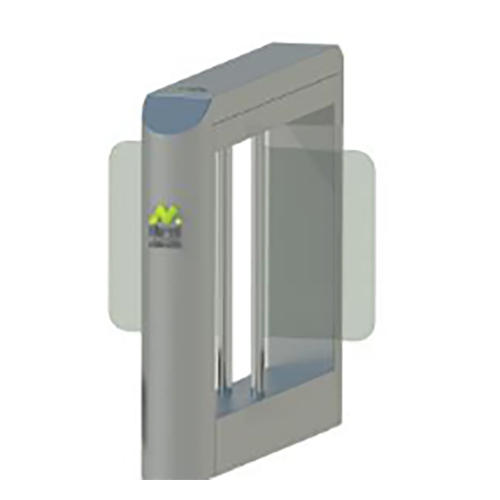

Retractable Swing Barrier

Get a Price/Quote

Product Details:

Connectivity Type RS485, TCP/IP
Control System Access Control Integration
Voltage AC 220V 10%, 50Hz
Power Consumption 50W
Display Type LED Indicator
Material Stainless Steel (304 Grade)
Alarm Audible and Visual Alarm for Unauthorized Access
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Retractable Swing Barrier Price And Quantity

Minimum Order Quantity 1 Unit

Life Cycle 5 Million Cycles
Noise Level <60 dB
Manual Override Available
Ingress Protection IP54
Humidity 5% - 95% RH (Non-Condensing)
Emergency Interface Emergency Unlock with Fire Alarm Integration
Opening/Closing Time 0.6 - 1 second
Passage Width 600 mm (Standard), customizable up to 900 mm
Operating Temperature -20°C to +60°C
Drive Motor DC Brushless Motor 24V

Retractable Swing Barrier Product Specifications

Material Stainless Steel (304 Grade)
Alarm Audible and Visual Alarm for Unauthorized Access
Power Consumption 50W
Display Type LED Indicator
Voltage AC 220V 10%, 50Hz
Control System Access Control Integration
Connectivity Type RS485, TCP/IP
Software Detail Compatible with third-party access software
Weight 60 - 70 kg
Usage & Applications Office Buildings, Metro Stations, Airports, Hospitals, Corporate Premises
Dimension (L*W*H) 1400*300*980 mm
Mounting Type Floor Mounted
Sensor Type Infrared Sensors
Power Supply AC 220V
Features Bidirectional Operation, Anti-tailgating, Emergency Mode, Fast Opening/Closing
Technology Microprocessor Based Control System

Life Cycle 5 Million Cycles
Noise Level <60 dB
Manual Override Available
Ingress Protection IP54
Humidity 5% - 95% RH (Non-Condensing)
Emergency Interface Emergency Unlock with Fire Alarm Integration
Opening/Closing Time 0.6 - 1 second
Passage Width 600 mm (Standard), customizable up to 900 mm
Operating Temperature -20°C to +60°C
Drive Motor DC Brushless Motor 24V

Retractable Swing Barrier Trade Information

Supply Ability 1 Unit Per Day
Delivery Time 7 Days

Product Description

Elevate your access control system with the Ace Retractable Swing Barrier, a premier solution highly recommended for security and convenience. Featuring a superlative 600 mm standard passage width, customizable up to 900 mm, it delivers ultra-fast opening and closing times of just 0.6 to 1 second. Built from robust 304-grade stainless steel, this barrier offers value with a remarkable life cycle of five million cycles, efficient DC brushless motor, and seamless integration with leading access software. Order today for dependable, bidirectional operation and emergency functionalities-trusted by offices, metros, airports, and more across India.

Installation & Application Method

The Retractable Swing Barrier is floor-mounted for steady, secure installation. Designed for simplicity, it can be positioned at key entry or exit points in office buildings, metro stations, airports, hospitals, and corporate premises. For proper application, align the barrier as per the recommended site requirements, connect it to the designated power source, and integrate with your access control system. Its bidirectional operation and anti-tailgating features ensure reliable, controlled entry in any commercial environment.

Market Reach, Samples & Packaging

Explore the market value of our Retractable Swing Barrier-samples are available for evaluation before major purchases, ensuring you understand the product quality firsthand. Each unit is packaged securely, safeguarding it during transit. With competitive sale prices and advantageous rates, our barriers are exported to premier markets, including Asia and Africa. Businesses seeking optimal security solutions appreciate the combination of robust packaging, specialty export support, and accessible sample options tailored to industry needs.

FAQ's of Retractable Swing Barrier:

Q: How does the emergency unlock function work with fire alarm integration?

A: When the fire alarm is triggered, the swing barrier's emergency unlock feature automatically activates, ensuring fast and safe evacuation. This integration enhances the safety standards in high-traffic areas such as metro stations and corporate buildings.

Q: What are the main benefits of the microprocessor-based control system?

A: The microprocessor-based control system delivers precise, reliable barrier movement, seamless access control integration, and supports advanced security features, making it ideal for high-security environments.

Q: Where can the retractable swing barrier be installed?

A: This barrier is suitable for use at office building entrances, metro stations, airports, hospitals, and corporate premises-it is flexible in commercial and industrial site applications.

Q: What is the recommended usage for optimal product longevity?

A: It is advised to use the Retractable Swing Barrier with compatible access control systems, operate within specified passage widths, and perform regular maintenance checks. Doing so ensures extended life cycles and consistent performance.

Q: How does bidirectional operation enhance security and convenience?

A: Bidirectional operation allows controlled entry and exit through the same barrier, improving pedestrian flow efficiency and ensuring accurate monitoring, particularly in areas with high foot traffic.
